Human-Machine Interfaces (HMIs)

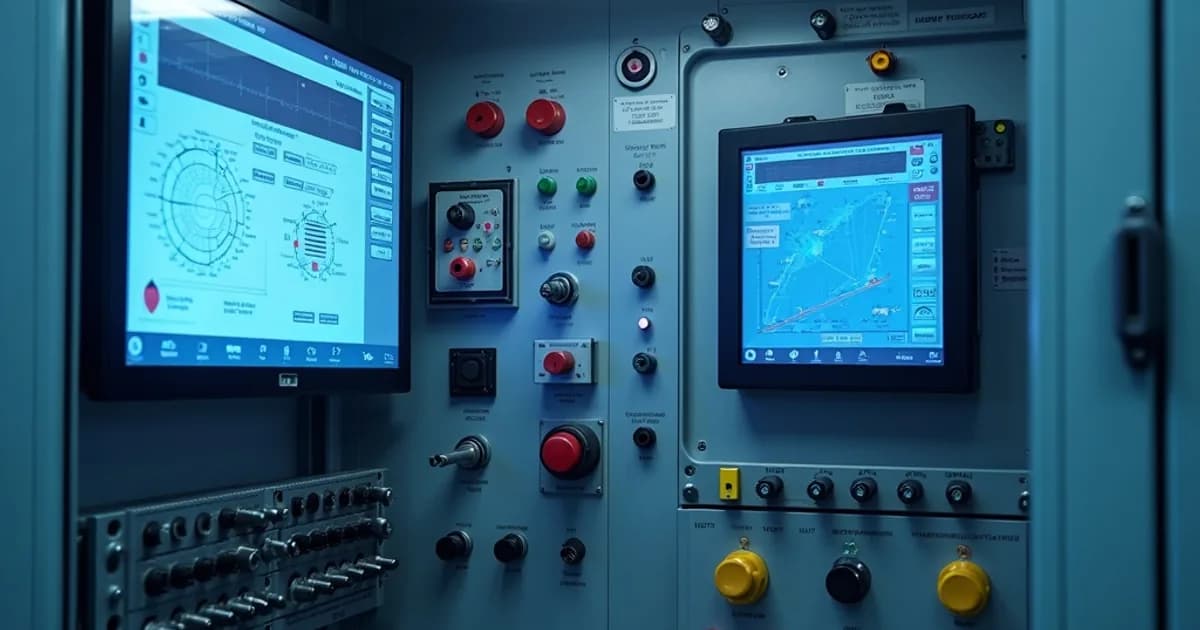

Human-Machine Interfaces (HMIs) serve as vital components in industrial automation, bridging the gap between operators and control systems housed within industrial panels. These interfaces facilitate the monitoring and management of various processes, enhancing operational efficiency and safety. HMIs can range from basic text-based displays to sophisticated graphical touchscreens, supporting a wide array of functionalities necessary for automation environments. Modern HMIs are designed to accommodate high-resolution displays, offering precise, real-time visualization of process variables, alarms, and trends. Such capabilities are crucial for operators needing to make informed decisions based on accurate, timely data. When selecting an HMI, various technical specifications and compliance standards must be considered to ensure optimal integration and performance. UL 508A and NFPA 79 outline essential safety standards for industrial control panels incorporating HMIs, emphasizing the importance of compliance with electrical and functional safety requirements. The selection process involves assessing criteria such as screen size, typically ranging from compact 4-inch displays for basic monitoring tasks to 22-inch widescreen models for more intricate supervisory control and data acquisition (SCADA) applications. Resolution and processing power are equally critical, as they directly impact the clarity and speed of the interface's response. Communication capabilities are another critical aspect, as HMIs must seamlessly interact with programmable logic controllers (PLCs) and other control devices. Adherence to communication protocols, such as Modbus, Ethernet/IP, and Profibus, ensures compatibility across diverse systems. The adoption of advanced communication standards is pivotal for real-time data exchange and enhanced system integration. Furthermore, the environmental specifications, including IP rating and operating temperature range, dictate an HMI’s suitability for specific industrial environments. Panels deployed in harsh conditions require interfaces with high IP ratings and robust temperature tolerance. Industry standards like IEC 61131-3 are indispensable for software development in HMIs, promoting consistency and interoperability between different devices and systems. These standards guide the programming interfaces, supporting ladder logic, function block diagrams, structured text, and sequential function charts. This standardization empowers system integrators to adopt uniform programming practices, streamlining system upgrades and maintenance. For panel builders and system integrators, the choice of the right HMI goes beyond technical specifications; it requires a thorough understanding of the operational context. Interfaces must not only be compatible with existing systems but also scalable to accommodate future expansions. A well-chosen HMI will provide intuitive usability, reducing the learning curve and minimizing operator errors. Ultimately, selecting an HMI that aligns with both immediate operational needs and long-term strategic goals is critical for achieving sustained productivity and flexibility in industrial environments.
